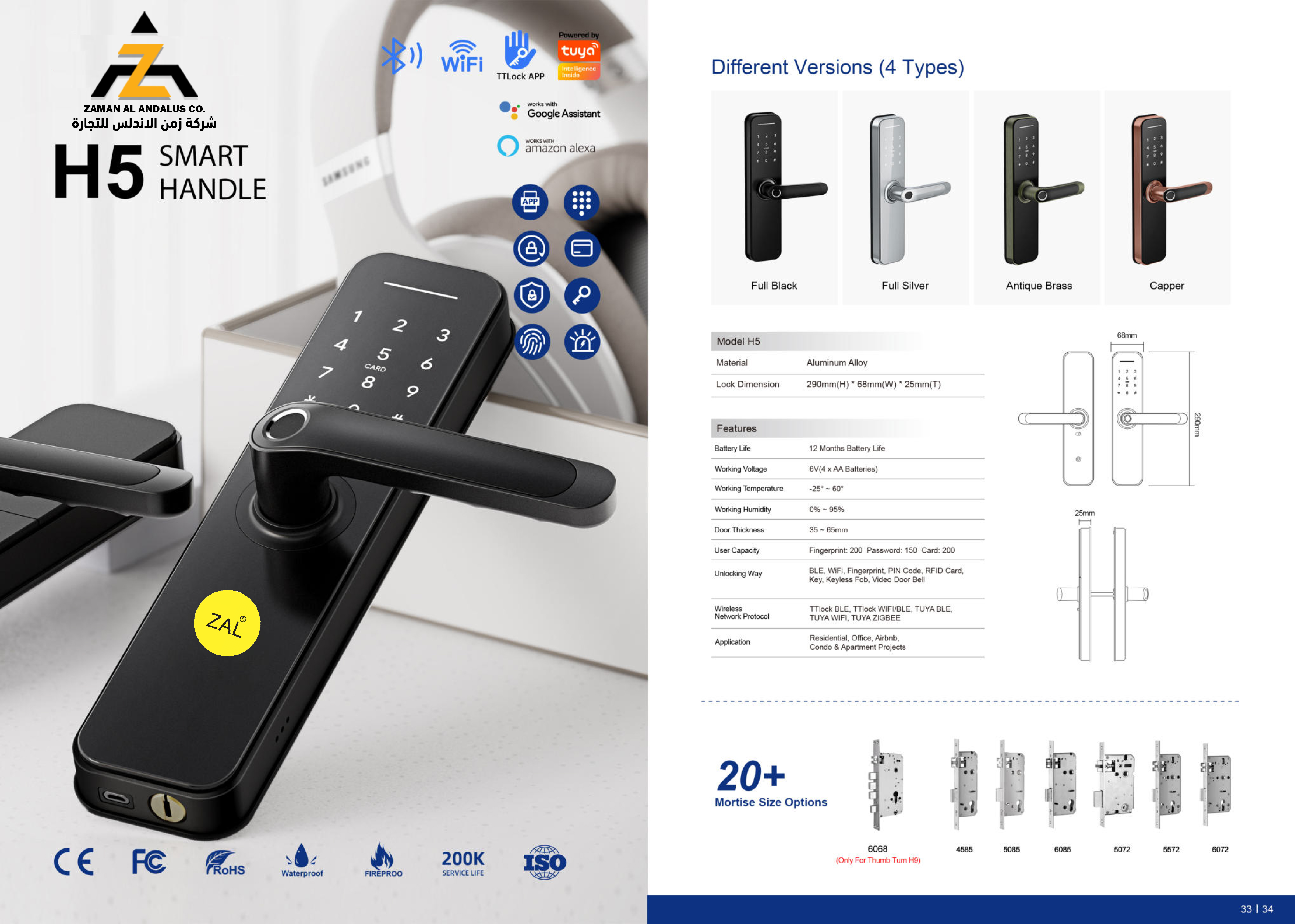

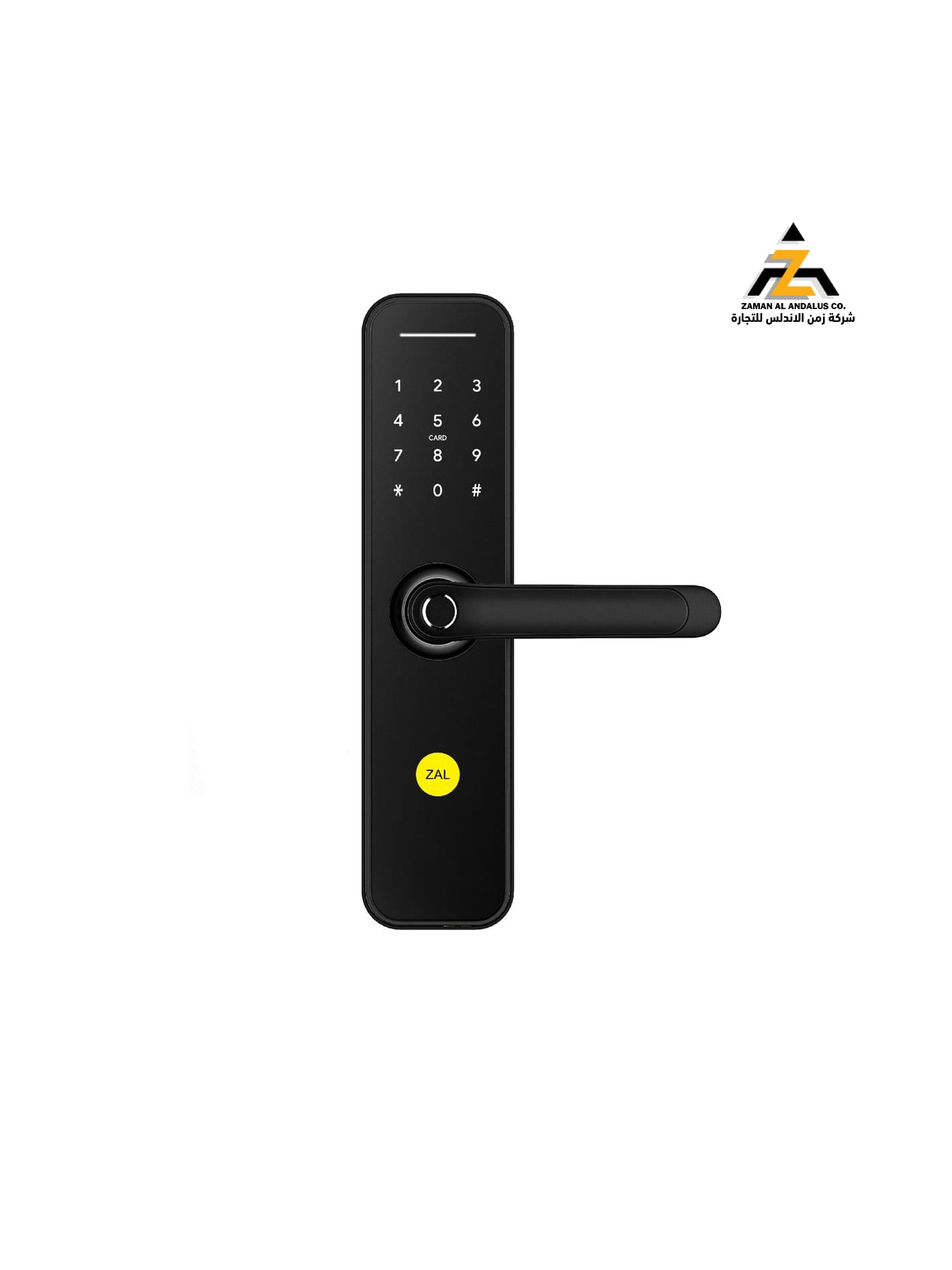

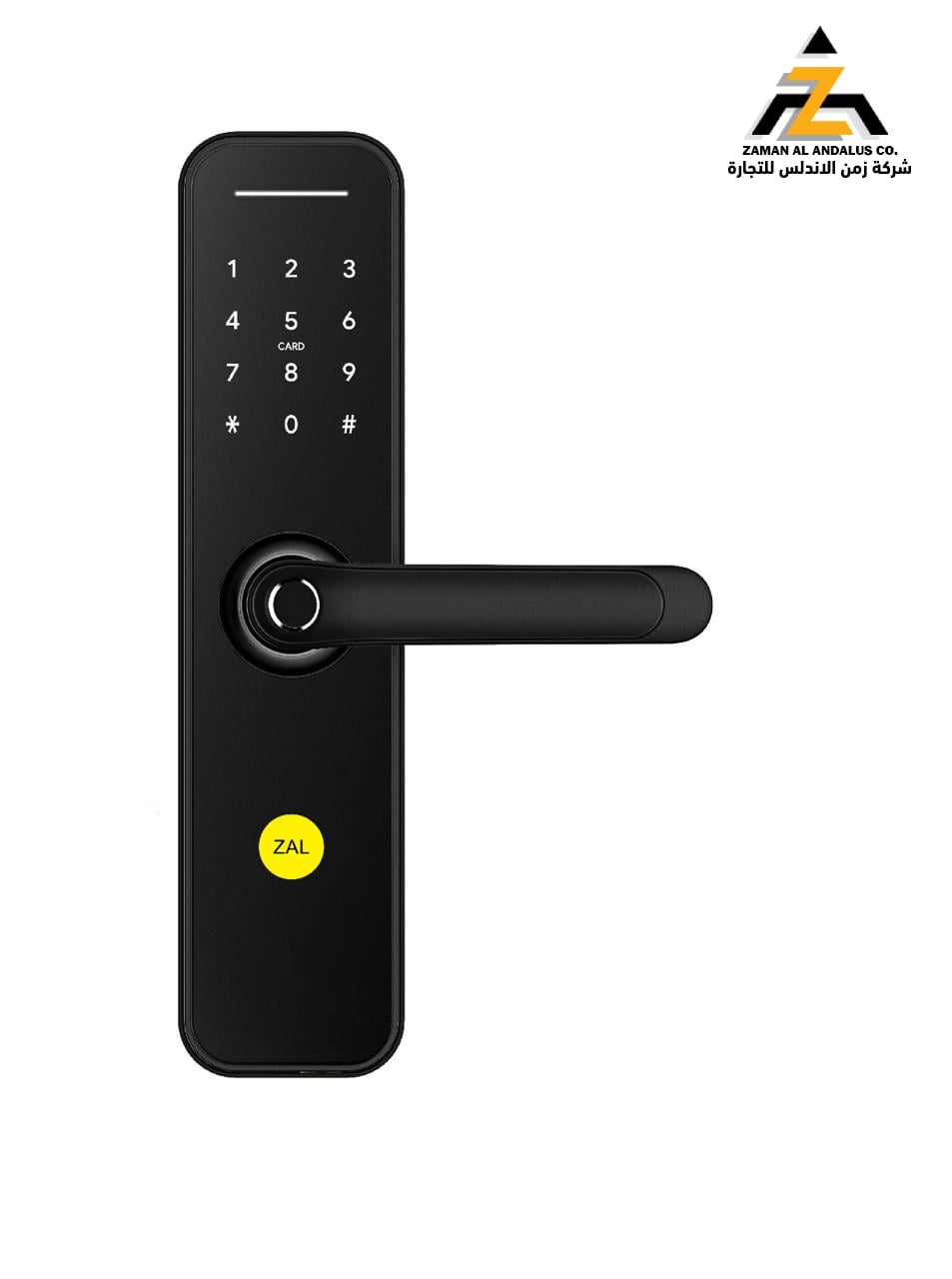

Smart Handle Lock
The ZAL H5 is a state-of-the-art smart lock that combines modern design with high security. It features an integrated door handle and a smart locking system that supports multiple unlocking methods. The lock offers a user-friendly and secure experience thanks to support for smartphone control, fingerprint, PIN, smart card, and traditional key, making it suitable for modern homes and offices.
Basic Information
- Model: H5
- Product type: Smart Handle Lock
- Material: High-quality aluminum alloy
- Usage: Homes – Offices – Apartments – Hotels – Residential Projects
- Suitable door types: wood – metal – aluminum – security doors
Design and dimensions
- Lock dimensions:
- Height: 290 mm
- Width: 68 mm
- Thickness: 25 mm
- Design:
- Integrated door handle with digital keypad
- Hidden touchscreen with a sleek design
- Corrosion-resistant metal structure
Methods of unlocking the lock
The lock supports several advanced door opening methods to provide greater flexibility and security:
- Open via smartphone application (APP)
- Open via Bluetooth
- Open via WiFi
- Fingerprint unlock
- Unlock using a PIN code
- Unlock via RFID/IC Card
- Open using the emergency mechanical key
Smart connectivity and integration
- Connectivity: Bluetooth + WiFi
- Supported applications:
- TTLock
- Tuya Smart
- Compatible systems:
- Google Assistant
- Amazon Alexa
- User management via the application
- Create temporary passwords for guests
- Instant notifications when the door is opened
User capacity
- Fingerprint: Up to 200 users
- Passwords: Up to 150 users
- Smart cards: up to 200 cards
Battery and power
- Battery type: 4 AA batteries
- Voltage: 6V
- Battery life: Up to 12 months depending on usage
- Low battery alert: Yes
- Backup power outlet: Available for emergencies
Operating conditions
- Operating temperature: -25°C to 70°C
- Humidity level: 0% to 95%
- Suitable door thickness: 35 – 65 mm
internal locking system
- Supports more than 20 different types of Mortise
- Suitable for most standard door types
- Lifespan of up to 200,000 opening and closing operations
Quality standards
- CE Certification
- FCC Certification
- RoHS Certification
- ISO Quality Standard
Additional features
- Waterproof
- Fire resistant
- Modern design suitable for modern decor
- Automatic lock after the door is closed
- Alarm sounds when someone tries to tamper with the lock.
